AB9077-B
Производитель: HMS Industrial Networks AB (Швеция)
Модель: 14562-17
Артикул: AB9077-B
Наличие: Предзаказ
Модель: 14562-17
Артикул: AB9077-B
Наличие: Предзаказ
Кол-во:
- или -
В закладки
В сравнение
В сравнение

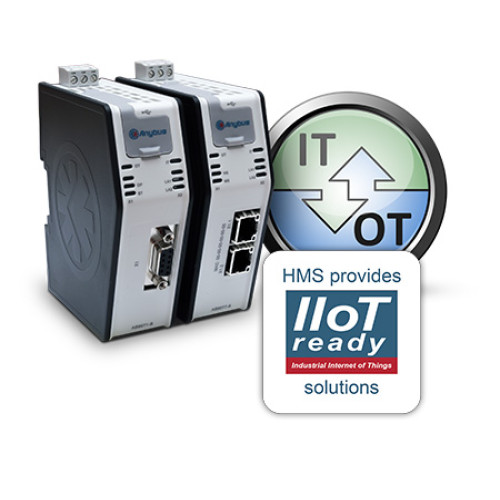

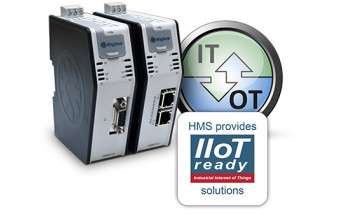

Anybus PROFINET to .NET gateway
The Anybus PROFIBUS to .NET gateway enables factory-floor data from PROFIBUS to be presented to .NET applications.
As a .NET programmer, you can get data directly from a PLC system and use this data in applications for statistics, analysis or maintenance.
The gateway can be used with a wide range of use cases, from simple transfer of KPI values, advanced messages with structured data types, or ultra-fast transfer of I/O data for “big data.”
CONFIGURATION The information exchange between the Operational Technlogy (OT) side and the Information Technology (IT) side is defined in a spreadsheet template.
The HMS code generator will then automatically create a customized high level C# API (events and Post methods) that is easy to integrate directly into your .NET application. At the same time, a customized GSDML file is created that simplifies the integration in the PLC.
As a .NET programmer, you can get data directly from a PLC system and use this data in applications for statistics, analysis or maintenance.
The gateway can be used with a wide range of use cases, from simple transfer of KPI values, advanced messages with structured data types, or ultra-fast transfer of I/O data for “big data.”
CONFIGURATION The information exchange between the Operational Technlogy (OT) side and the Information Technology (IT) side is defined in a spreadsheet template.
The HMS code generator will then automatically create a customized high level C# API (events and Post methods) that is easy to integrate directly into your .NET application. At the same time, a customized GSDML file is created that simplifies the integration in the PLC.
| Память | |
| Поддержка SD карт | For backup, configuration and easy replacement |
| Коммуникационные интерфейсы | |
| Интерфейсы | PROFINET to .NET gateway |
| Конструктив | |
| Назначение | Шлюз PROFINET to .NET |
| Серия | Anybus .NET Gateway |
| Степень защиты корпуса: | IP20, NEMA rating 1 |
| Возможности монтажа | DIN-rail (EN 50022 standard) or Wall Mount (optional) |
| Температура хранения | -40 to +85 ℃ or -40 to +185°F |
| Комплект поставки | AnybusPROFINET to .NET gateway (Power supply not included) |
| Температура эксплуатации: | -25 to +70 ℃ or -13 to +158°F |
| Вес, кг. | 160g or 0,35 lbs |
| Габариты, мм | 110 x 35 x 101 mm or 4,33 x 1,38 x 3,98" |
| Гарантия от производителя | 3 years |
| Сертификаты | CE,CULUS, ATEX/Haz.Loc, RoHS |
| Порты | |
| Портов Fieldbus/Ethernet | (See the secondary network interface details above) |
| Питание | |
| Входное напряжение питания DC: | 24 VDC |
