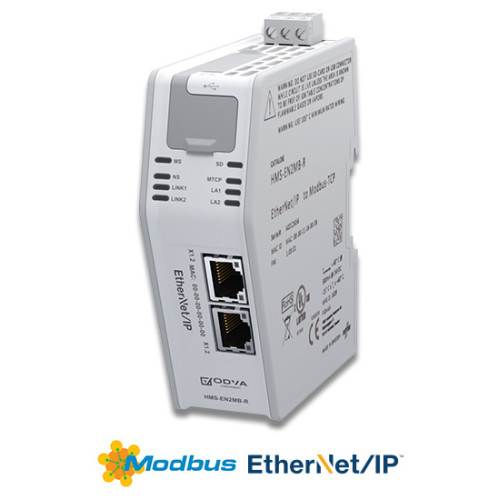

HMS-EN2MB-R
Модель: 14632-17
Артикул: HMS-EN2MB-R
Наличие: Предзаказ
В сравнение
Minimize costs when connecting Modbus-TCP networks/devices to ControlLogix® or CompactLogix® controllers with an EtherNet/IP interface.
FAST COPYING I/O DATA (BIG DATA SUPPORT)
The Linking Device primary function is with the fast transfer of large I/O data between the two networks. This offloads your Logix PLC from working with additional calculations. The Linking Device acts as a slave (adapter) on EtherNet/IP and as a powerful client (master), on the Modbus-TCP network, handling up to 8 KB of I/O data. The data transmission between the two networks is completely transparent.
SEAMLESS INTEGRATION WITH STUDIO 5000
With its unique Studio 5000® Logix designer integration, everything is accessible from within Studio 5000, including Modbus-TCP network configuration. No extra 3rd-party software or licenses needed.
CONNECT, CONFIGURE, DONE
EtherNet/IP Linking Devices are configured using a Custom Add-On Profile for Studio 5000 Logix Designer which dynamically generates data structures based on the configuration. No ladder logic files (add on instructions) needed.
Furthermore, it also supports automatic generation of named and structured Studio 5000 controller tags, which eliminates the need to create alias tags.
| Память | |
| Поддержка SD карт | YES, enabling easy module replacement |
| Коммуникационные интерфейсы | |
| Интерфейсы | EtherNet/IP to Modbus-TCP Linking Device |
| Modbus-TCP address | Any valid IP address can be used |
| Поддержка EtherNet/IP: | 10/100 Mbit/s autodetect |
| Управляемый: | Any valid IP address can be used |
| Поддержка Modbus TCP: | 10/100 Mbit/s autodetect |
| Конструктив | |
| Назначение | Шлюз EtherNet/IP |
| Серия | Linking Devices |
| Степень защиты корпуса: | IP20, NEMA rating 1 |
| Возможности монтажа | DIN-rail (EN 50022 standard) or Wall mount |
| Температура хранения | -40 to +85 ℃ or -40 to +185°F |
| Комплект поставки | HMS-EN2MB-R Linking Device, Installation guide,(Power supply not included) |
| Температура эксплуатации: | -25 to +70 ℃ or -13 to +158°F |
| Вес, кг. | 160 g, 0,35 lb |
| Габариты, мм | 110 x 35 x 101mm or 4,33 x 1,38x 3,98" |
| Гарантия от производителя | 3 years |
| Сертификаты | ODVA, CE,CULUS (ATEX/Haz.Loc - PENDING) |
| Порты | |
| Портов EtherNet/IP | 2x RJ45 |
| Портов Modbus TCP | 2x RJ45 |
| Питание | |
| Входное напряжение питания DC: | 24 VDC +/- 20% |
