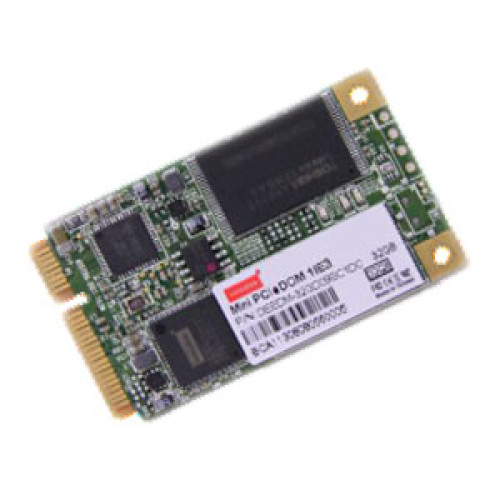

Твердотельный диск mini PCIeDOM 128GB Mini PCIeDOM 1IE3 (DHEDM-A28D09BW1DC)
Модель: 4808-03
Артикул: DHEDM-A28D09BW1DC
Наличие: Предзаказ
В сравнение
Innodisk Mini PCIeDOM 1IE3 is a Flash based disk module with Mini PCI Express interface, which brings you new generation of storage solution, especially focused on embedded systems. It not only provide standard Mini PCIe interface but also delivers exc
Innodisk Mini PCIeDOM 1IE3 is a Flash based disk module with Mini PCI Express interface, which brings you new generation of storage solution, especially focused on embedded systems. It not only provide standard Mini PCIe interface but also delivers excellent performance.
Comparing with most Mini PCIe storage devices in the market, Mini PCIeDOM 1IE3 comes with standard Mini PCI Express interface, just plug and play without any circuit modification, and no driver needed, which is the easiest way for board maker or system integrator to design in the product as a boot drive or storage device.
| Память | |
| ATA Security | Y |
| Capacity | 8GB~128GB |
| External DRAM Buffer | N |
| Flash Type | iSLC |
| H/W Write Protect | Y |
| Interface | PCI Express Gen.1 x 1 (mini PCIe) |
| Max. Channels | 2 |
| Max. Power Consumption | 2 W (3.3V x 620 mA ) |
| MTBF | >3 million hours |
| S.M.A.R.T. | Y |
| Sequential R/W (MB/sec, max.) | 130/100 |
| Storage Temperature | -55°C ~ +95°C |
| Thermal Sensor | Optional |
| Type | Standard |
| Тип | Mini PCIeDOM 1IE3 |
| Стандарт | iSLC |
| Объем | 128GB |
| Количество чипов | 2 |
| Скорость считывания (MB/S) | 130 |
| Скорость записи (MB/S) | 100 |
| Конструктив | |
| Model Name | Mini PCIeDOM 1IE3 |
| Shock | 1500G@0.5ms |
| Vibration | 20G@7~2000Hz |
| Назначение | Industrial. -40℃ ~ 85℃ |
| Серия | mini PCIeDOM |
| Габариты, мм | 29.8 x 50.8 x 4.4 |
| Примечание | Industrial. -40℃ ~ 85℃ TS 15nm |
