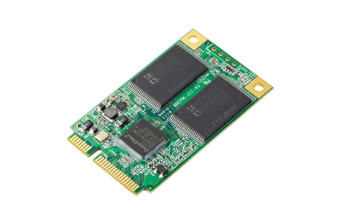

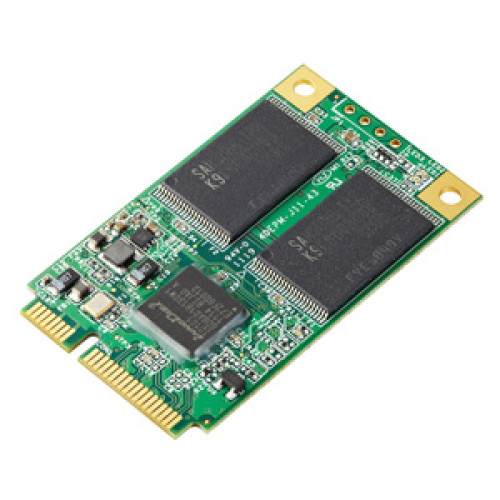

Твердотельный диск mSATA 64GB mSATA D150Q (DRPS-64GJ30AW3QB)
Модель: 4846-03
Артикул: DRPS-64GJ30AW3QB
Наличие: Предзаказ
В сравнение
Innodisk’s mSATA D150Q is designed in a standard mini PCIe form factor with a SATA interface. This unique combination provides fast data transfer rate performance and allows for effective integration in small form factor applications, such as digital
Innodisk’s mSATA D150Q is designed in a standard mini PCIe form factor with a SATA interface. This unique combination provides fast data transfer rate performance and allows for effective integration in small form factor applications, such as digital signage and notebooks. The mSATA D150Q also supports the SATA II standard (3.0Gb/s) and is compliant with JEDEC MO-300 standards and SATA-IO mini SATA standards. The mSATA D150Q is an SLC-based flash device and is available in capacities from 2GB up to 64GB.
| Память | |
| ATA Security | Y |
| Capacity | 2GB~64GB |
| External DRAM Buffer | N |
| Flash Type | SLC |
| H/W Write Protect | Y |
| Interface | SATA II 3.0Gb/s |
| Max. Channels | 4 |
| Max. Power Consumption | 1.25W (3.3V x 380mA) |
| MTBF | >3 million hours |
| S.M.A.R.T. | Y |
| Sequential R/W (MB/sec, max.) | 130/120 |
| Storage Temperature | -55°C ~ +95°C |
| Thermal Sensor | Y |
| Type | Standard |
| Тип | mSATA D150Q |
| Стандарт | SLC |
| Объем | 64GB |
| Количество чипов | 4 |
| Скорость считывания (MB/S) | 136 |
| Скорость записи (MB/S) | 122 |
| Конструктив | |
| Model Name | mSATA D150Q |
| Shock | 1500G@0.5ms |
| Vibration | 20G@7~2000Hz |
| Назначение | Industrial. -40℃ ~ 85℃ |
| Серия | mSATA |
| Габариты, мм | 29.8 x 50.8 x 3.5 |
| Примечание | Industrial. -40℃ ~ 85℃ |
